1985 GSX-R 750 GR71F

Restore • Recondition • Recommission

Some motorcycles change performance. Others change design. A very select few change the entire direction of motorcycling forever.

The 1985 Suzuki GSX-R750 GR71F did exactly that.

Widely regarded as the world’s first true race replica superbike, the original GSX-R750 completely rewrote the rules for production sports motorcycles. Lightweight, uncompromising and directly inspired by endurance racing technology, the GR71F represented a seismic shift away from heavy, overbuilt road bikes toward focused race-derived performance machines for the street.

Today, over 40 years later, the original “slabside” GSX-R remains one of the most important Japanese motorcycles ever built.

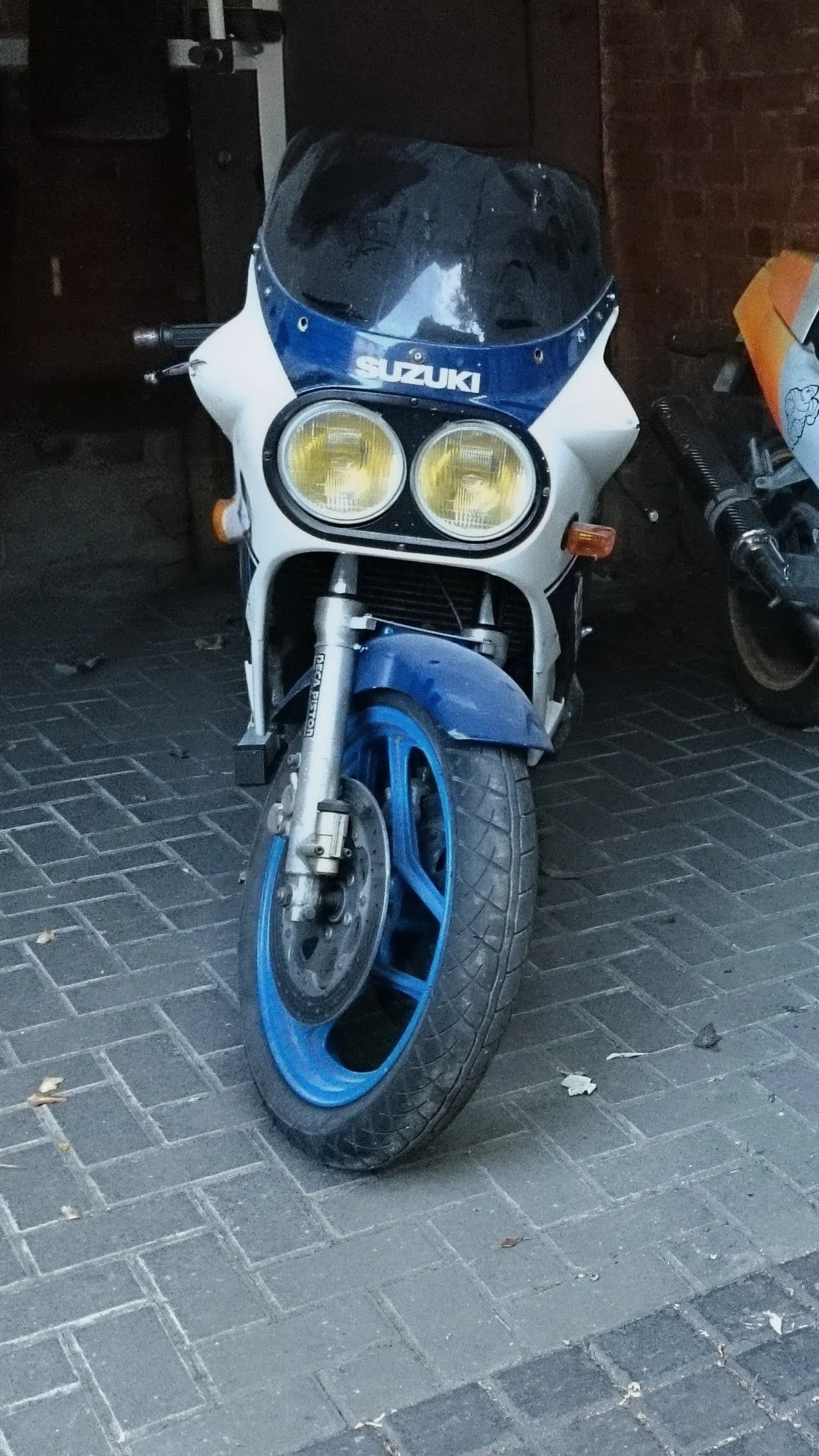

This particular machine arrived at Quadrant Motorcycles as a genuine Japanese Domestic Market (JDM) GR71F — a significant detail often lost over the years as many imported bikes were repainted into UK-market colours and specifications.

Unlike the UK models, the original Japanese colour scheme followed the lower lip of the belly pan beneath the motorcycle rather than sweeping rearward through the fairings and tail section. The bike also retained several highly desirable original JDM details including the factory smoke indicators and rear light assembly.

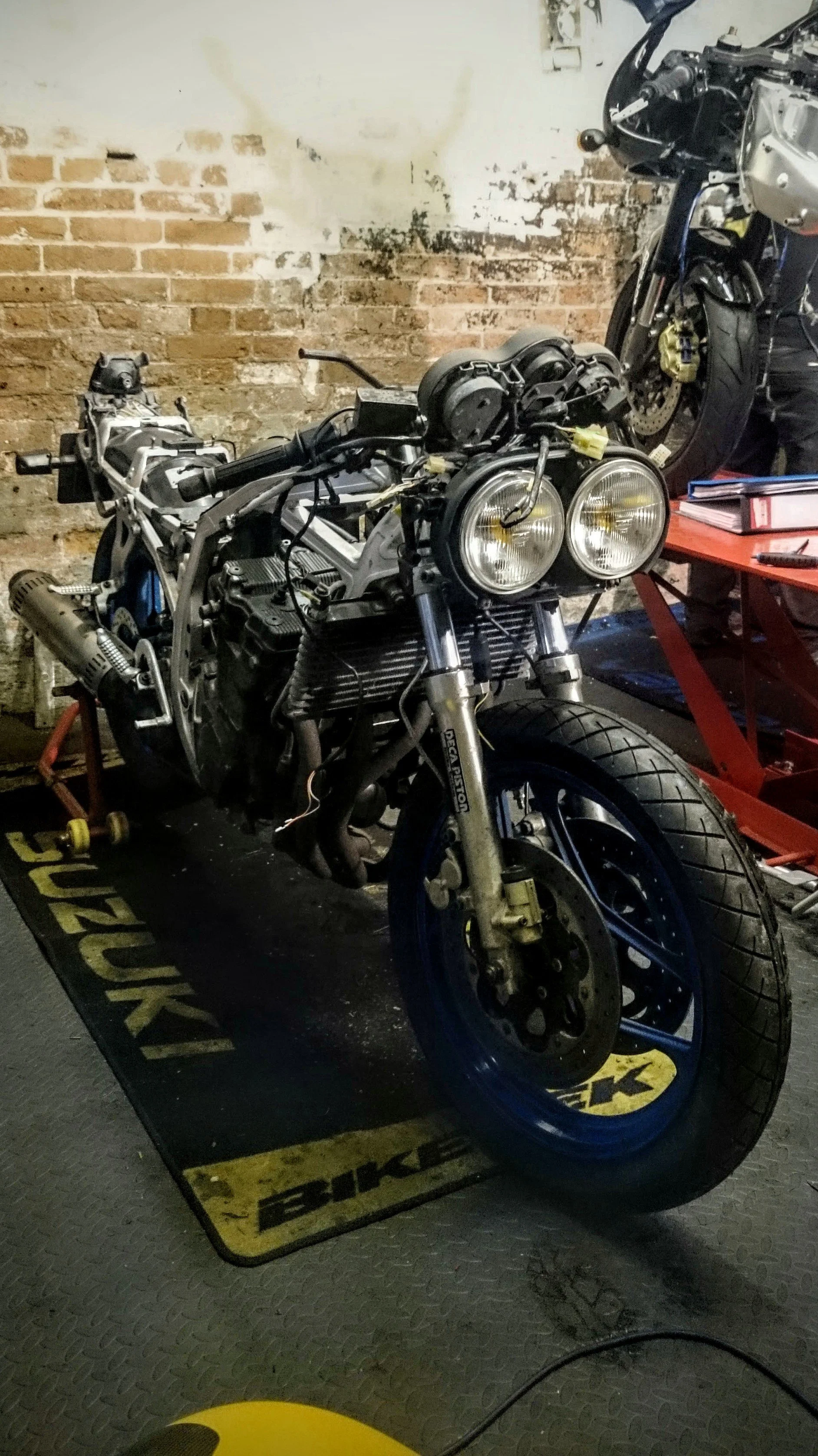

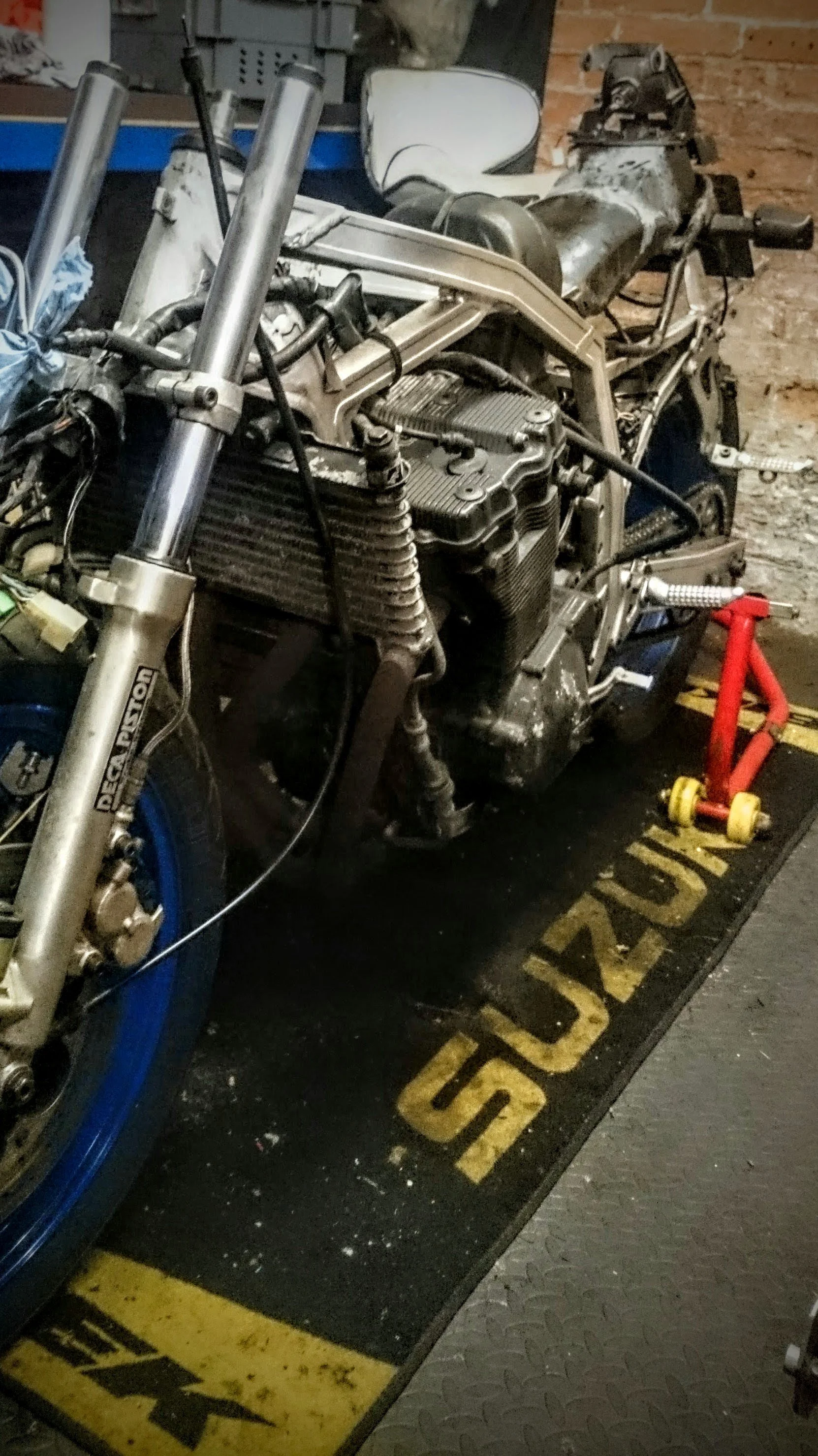

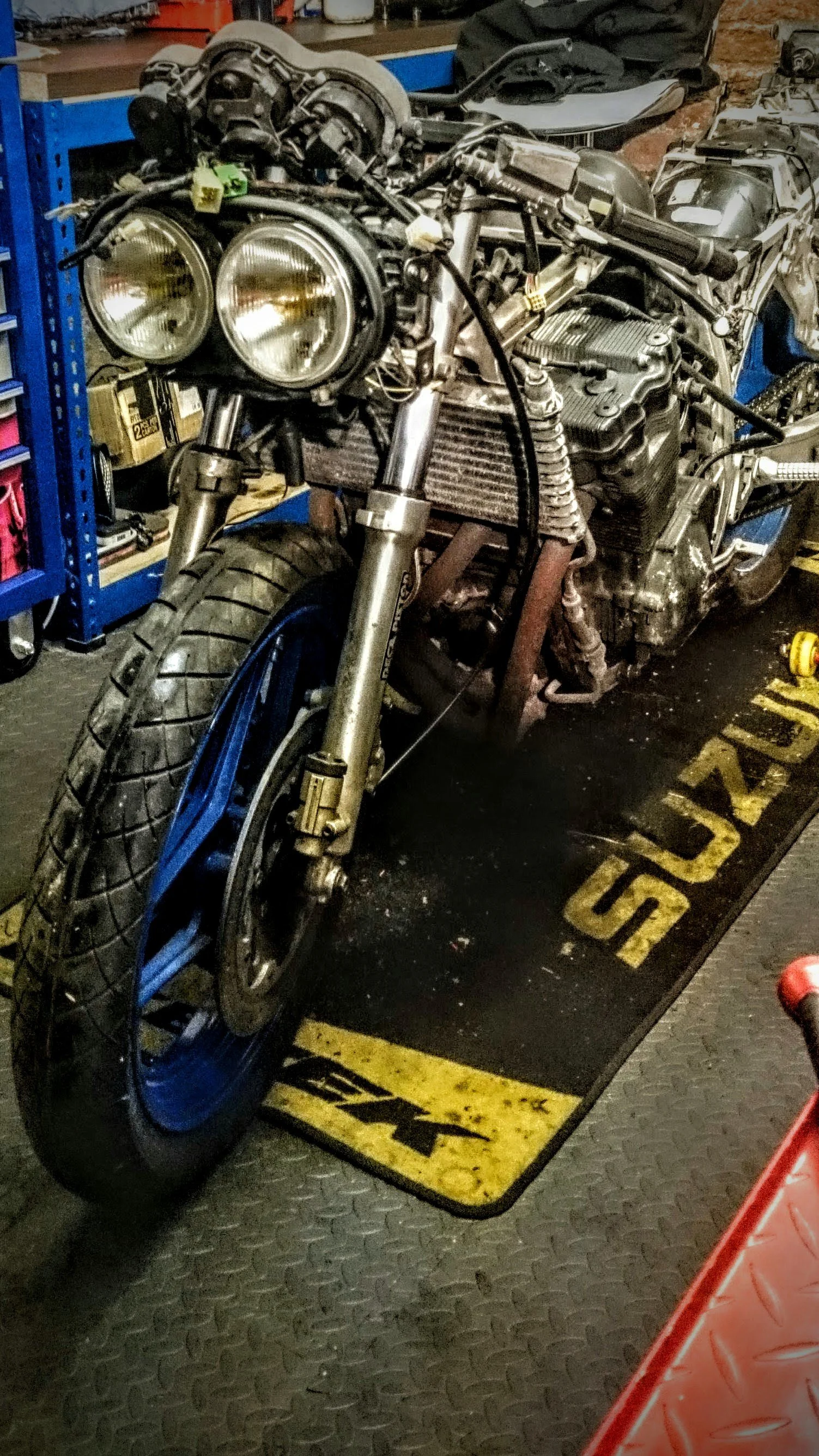

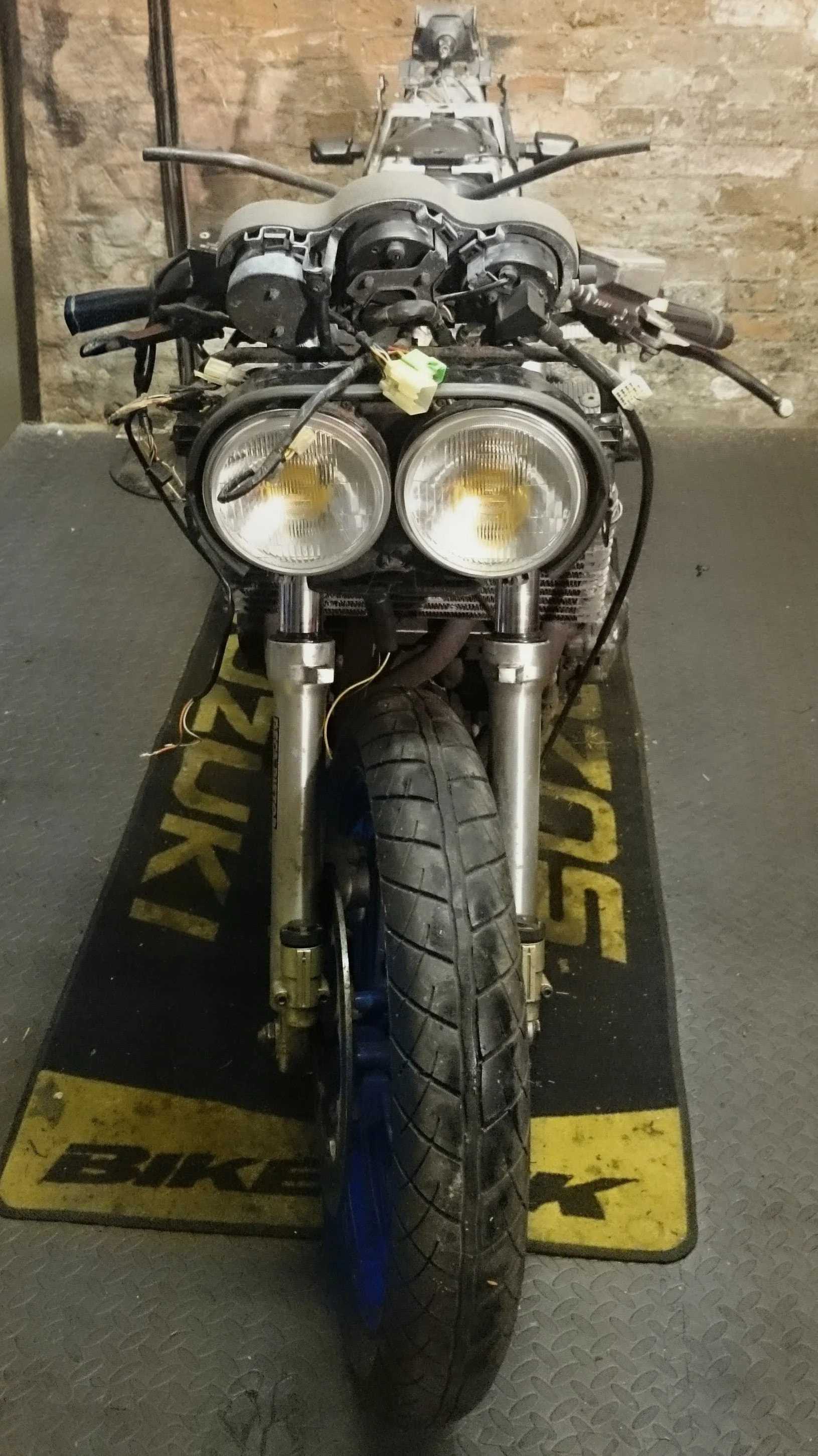

The current owner purchased the Suzuki as an abandoned restoration project from a previous owner. Hidden beneath a blanket in a garage, the motorcycle had become another unfinished dream quietly waiting for somebody willing to finish the job properly.

Thankfully, the motorcycle remained remarkably complete and retained many highly important original components:

• Original VM29SS Mikuni flatslide carburettors

• Original three-bolt upper fairing

• Original two-piece seat assembly

• Original JDM lighting components

• Original airbox system

However, one major problem immediately presented itself.

The original 1985 belly pan was missing.

A detail easily overlooked by many, but hugely important on the GR71F. The 1985 belly pan was unique to the first-year model, featuring a more rounded lower profile sweeping rearward beneath the engine. By 1986 Suzuki revised the shape to follow the curvature of the front wheel more closely.

For this project, authenticity mattered.

A UK-market replica was never the goal. This was a Japanese motorcycle and deserved to remain proudly Japanese.

Extensive sourcing work began internationally to recover correct first-year parts and specifications. One of the greatest finds was undoubtedly an original “cheese-grater” exhaust system sourced directly from Japan in exceptional rust-free condition — a component in such condition now bordering on unobtainable.

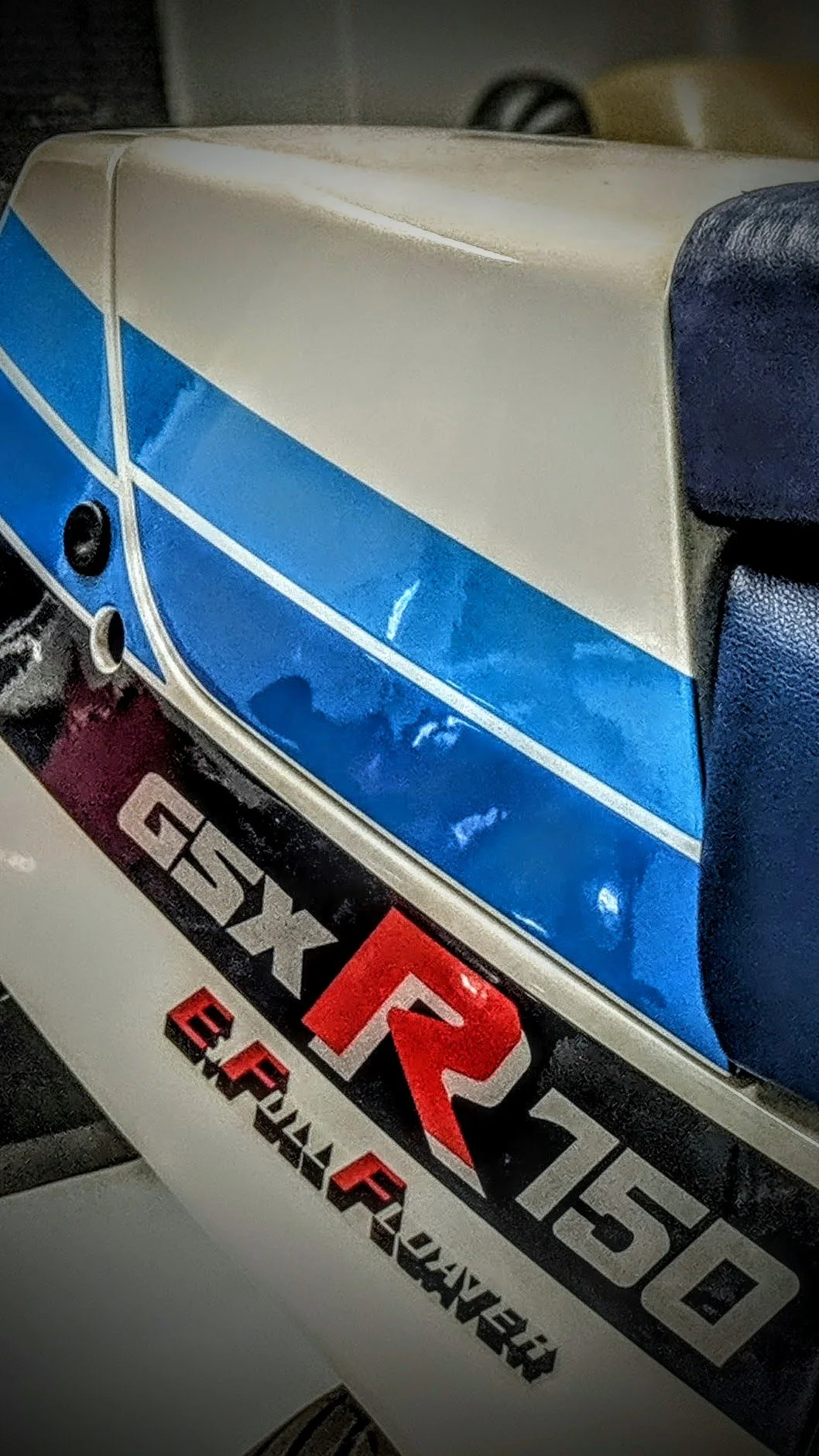

The accessory rear seat cowl was also missing, another period-correct detail highly sought after today. After significant searching, a genuine NOS item was sourced from Japan and fitted to complete the motorcycle correctly.

The GSX-R then underwent a comprehensive nut-and-bolt restoration with huge emphasis placed on originality, factory finish quality and correct hardware throughout.

Work completed included:

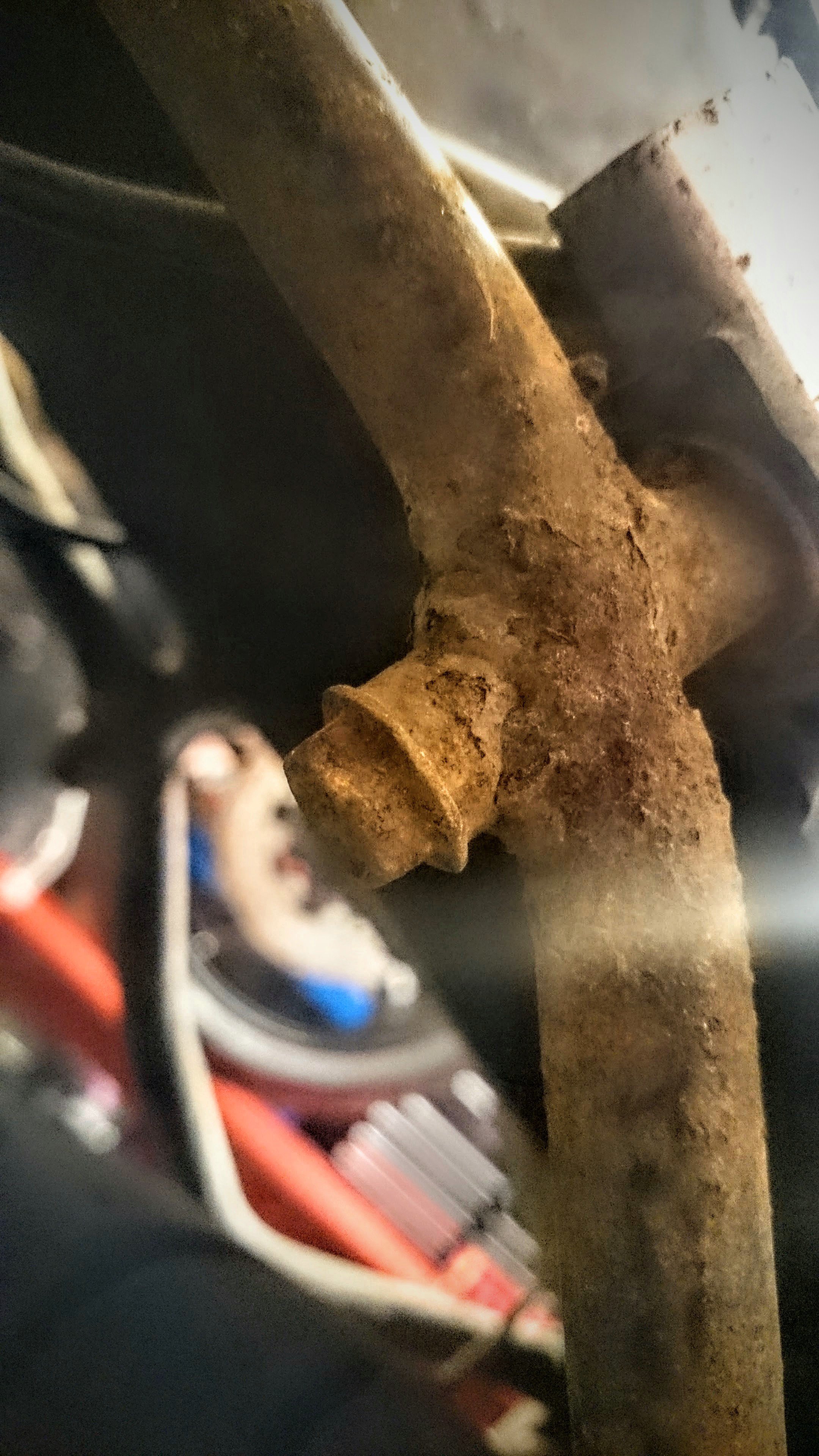

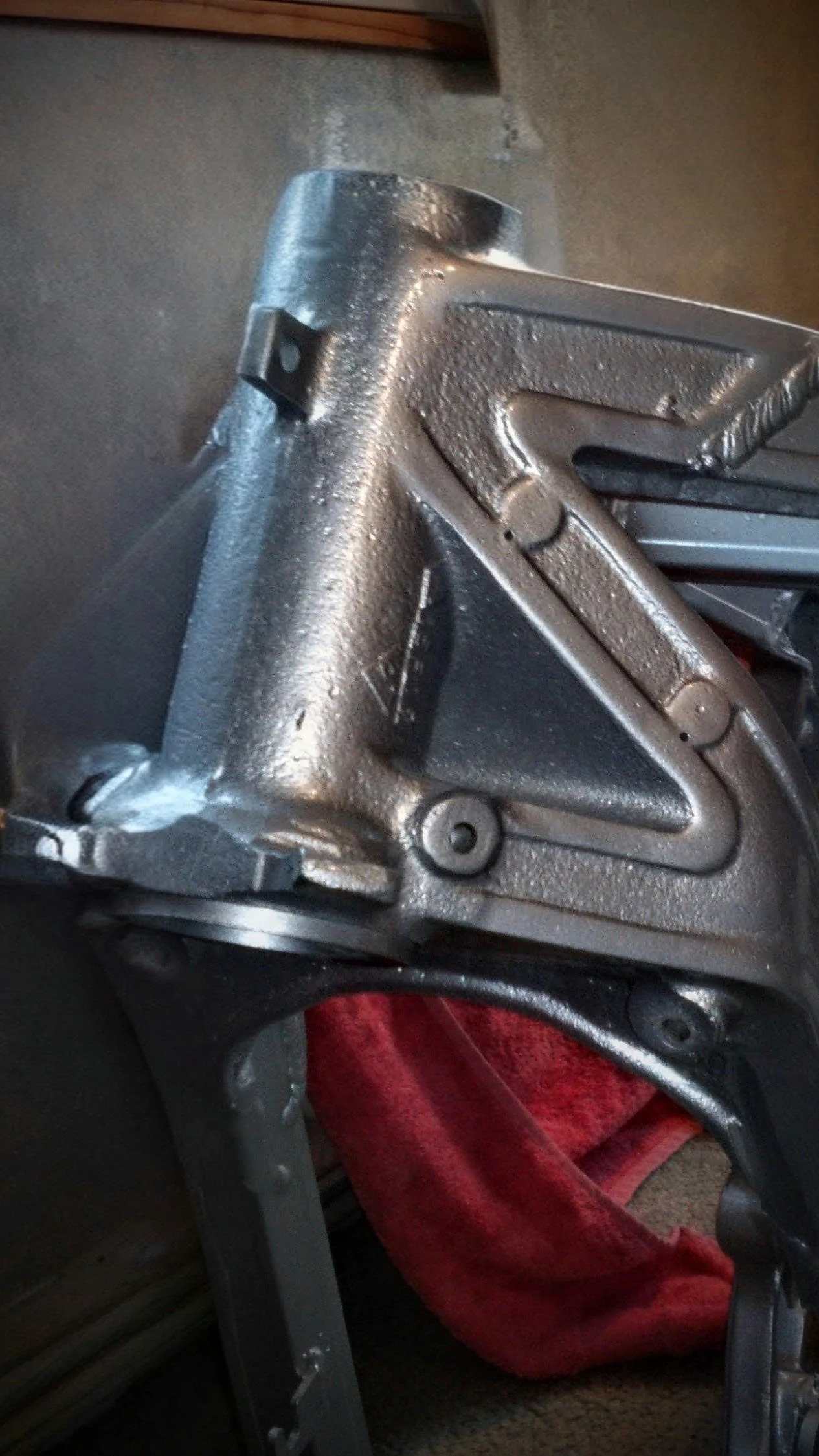

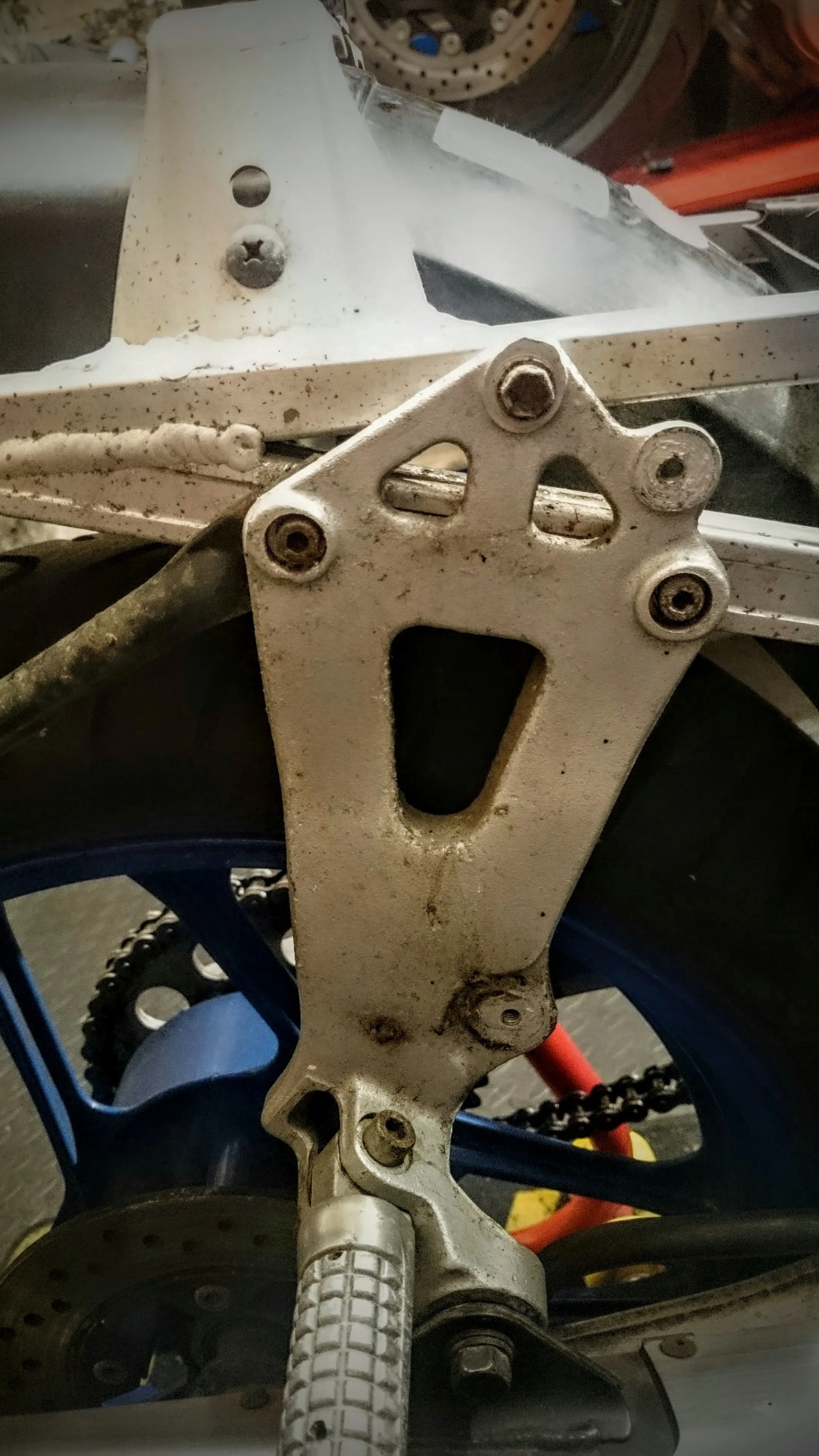

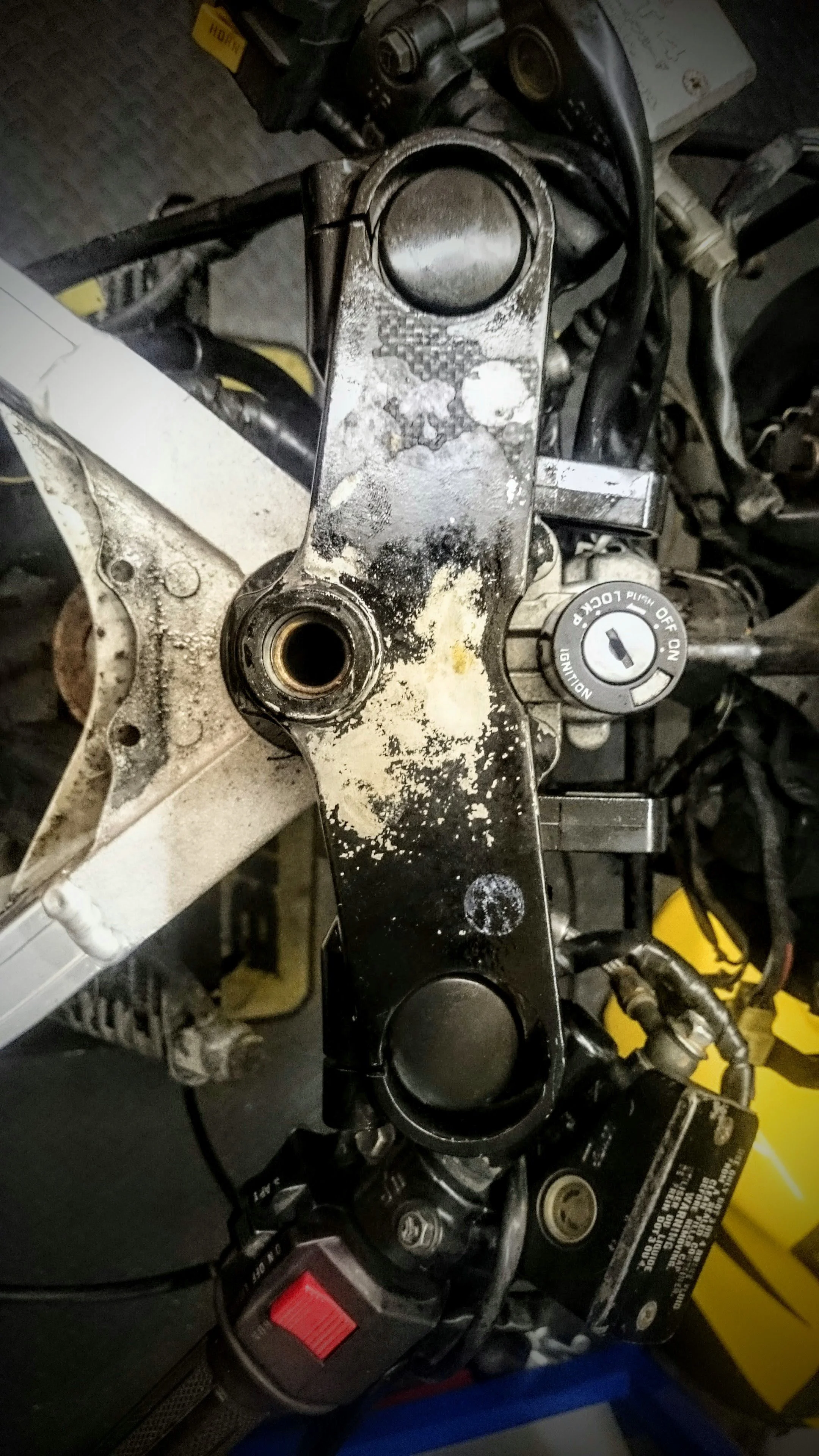

• Full chassis strip and restoration

• Complete bodywork repaint in correct JDM colours

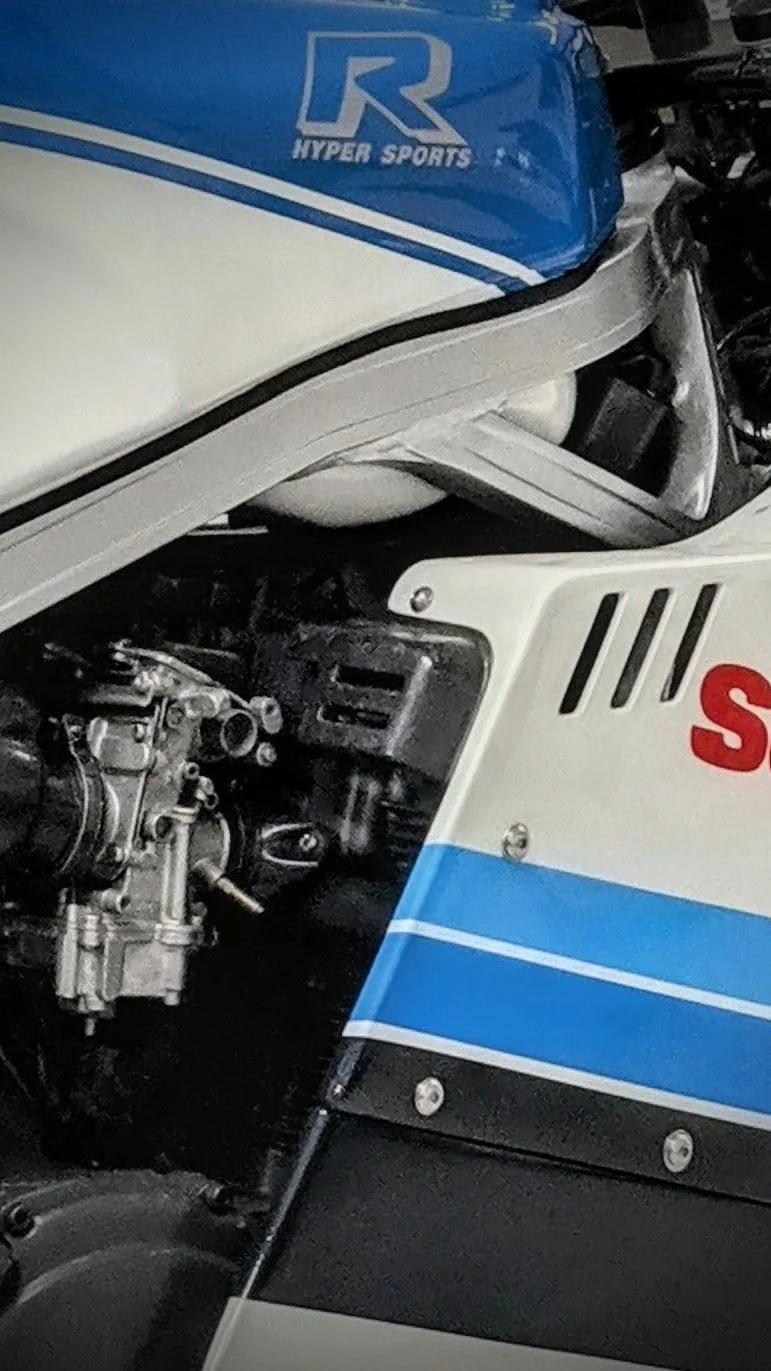

• Full carburettor strip, ultrasonic cleaning and rebuild

• Complete fastener replating programme

• Extensive OEM Suzuki fastener sourcing

• Front subframe and bracket refinishing

• Wheel refinishing in gloss black

• Electrical restoration and recommissioning

• Suspension and chassis refurbishment

• Fuel system restoration

• Full mechanical inspection and recommissioning

Particular care was taken to retain the original factory airbox system despite the enormous inconvenience involved should future removal ever become necessary. Unlike later GSX-R models, the 1985 GR71F used a one-piece frame design without removable frame outriggers. This means the airbox must be installed before the engine during assembly — requiring full engine removal for future extraction.

Painstakingly awkward.

But entirely correct.

That philosophy ultimately defined the entire project.

This was never intended to become an over-modernised restomod or a simplified replica. Instead, the focus remained firmly on preserving the authenticity, engineering character and visual identity of Suzuki’s original superbike revolution.

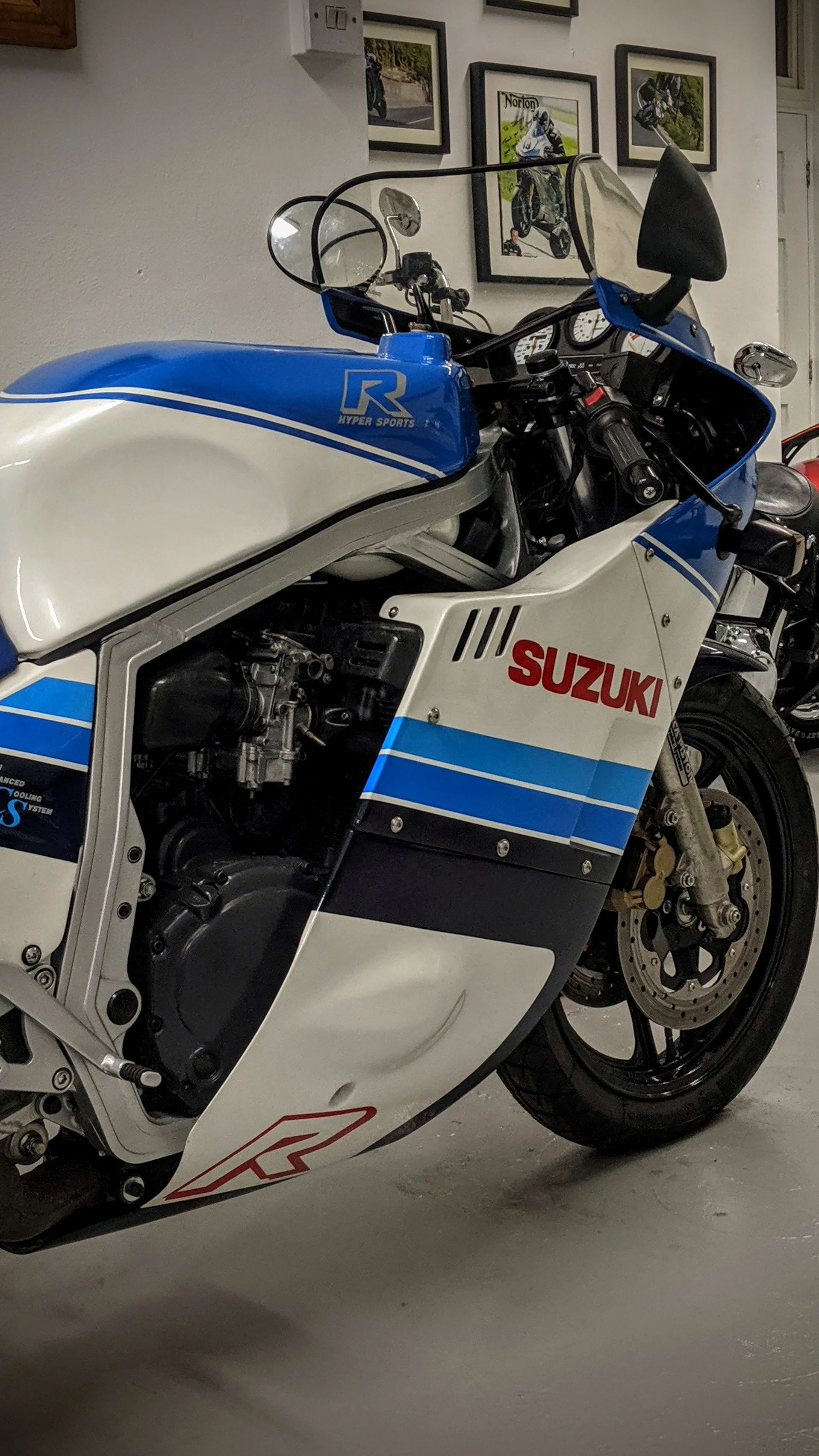

Today, the finished motorcycle serves as a reminder of just how radical the original GSX-R truly was.

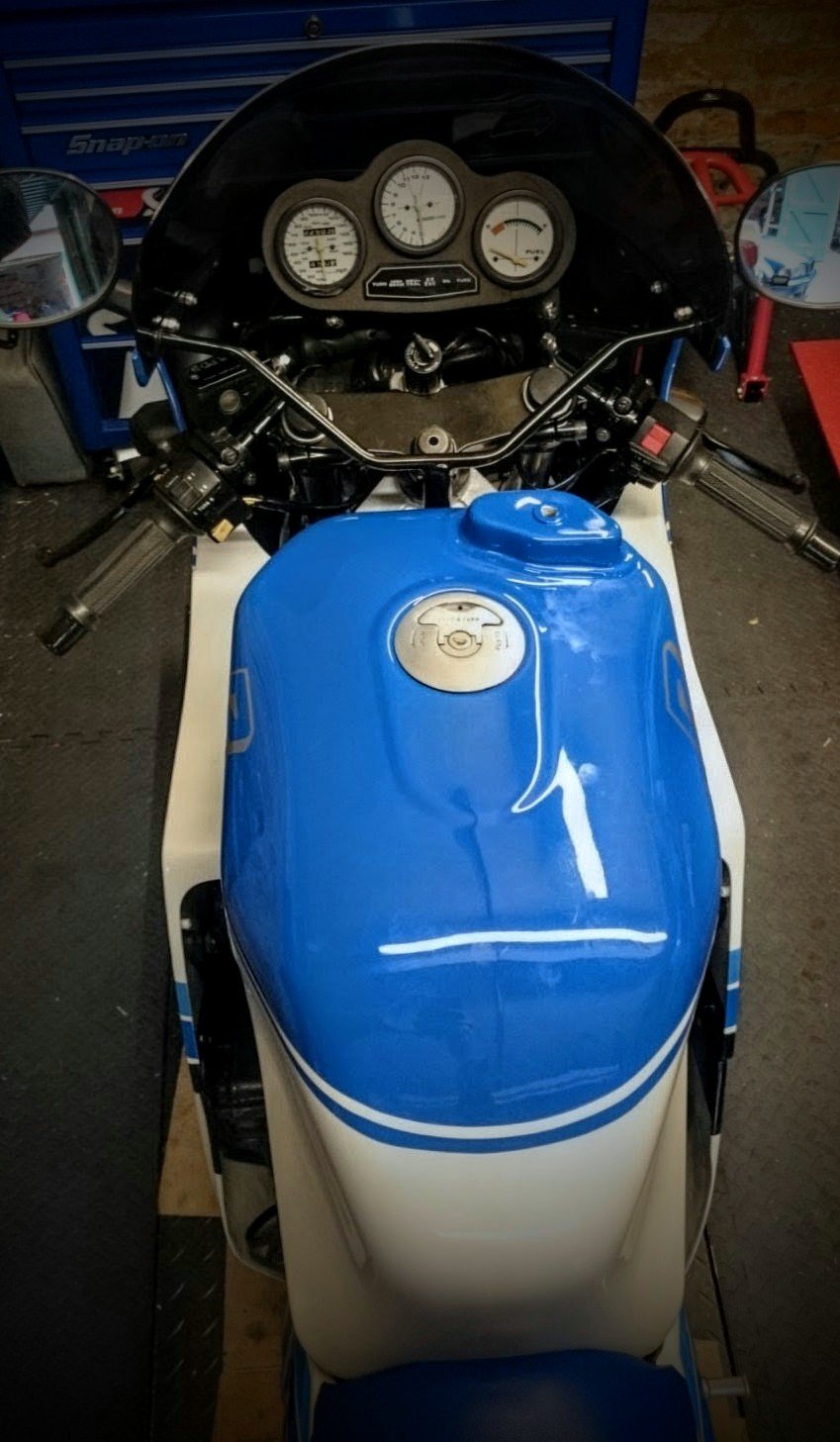

Even by modern standards the bike feels astonishingly compact and light. The chassis is incredibly narrow, the ergonomics sporty yet surprisingly comfortable, and the entire riding position creates the unmistakable sensation of sitting “within” the machine rather than simply on top of it.

At 41 years old, it remains an extraordinary riding experience.

A true superbike landmark.

Quadrant Motorcycles would love to undertake more period-correct Japanese superbike restorations of this nature — preserving originality, factory engineering philosophy and historical authenticity wherever possible.

Quadrant Motorcycles specialises in classic motorcycle restoration, vintage superbike recommissioning and engineering-led preservation projects from our workshop in Donington, East Midlands, UK.
